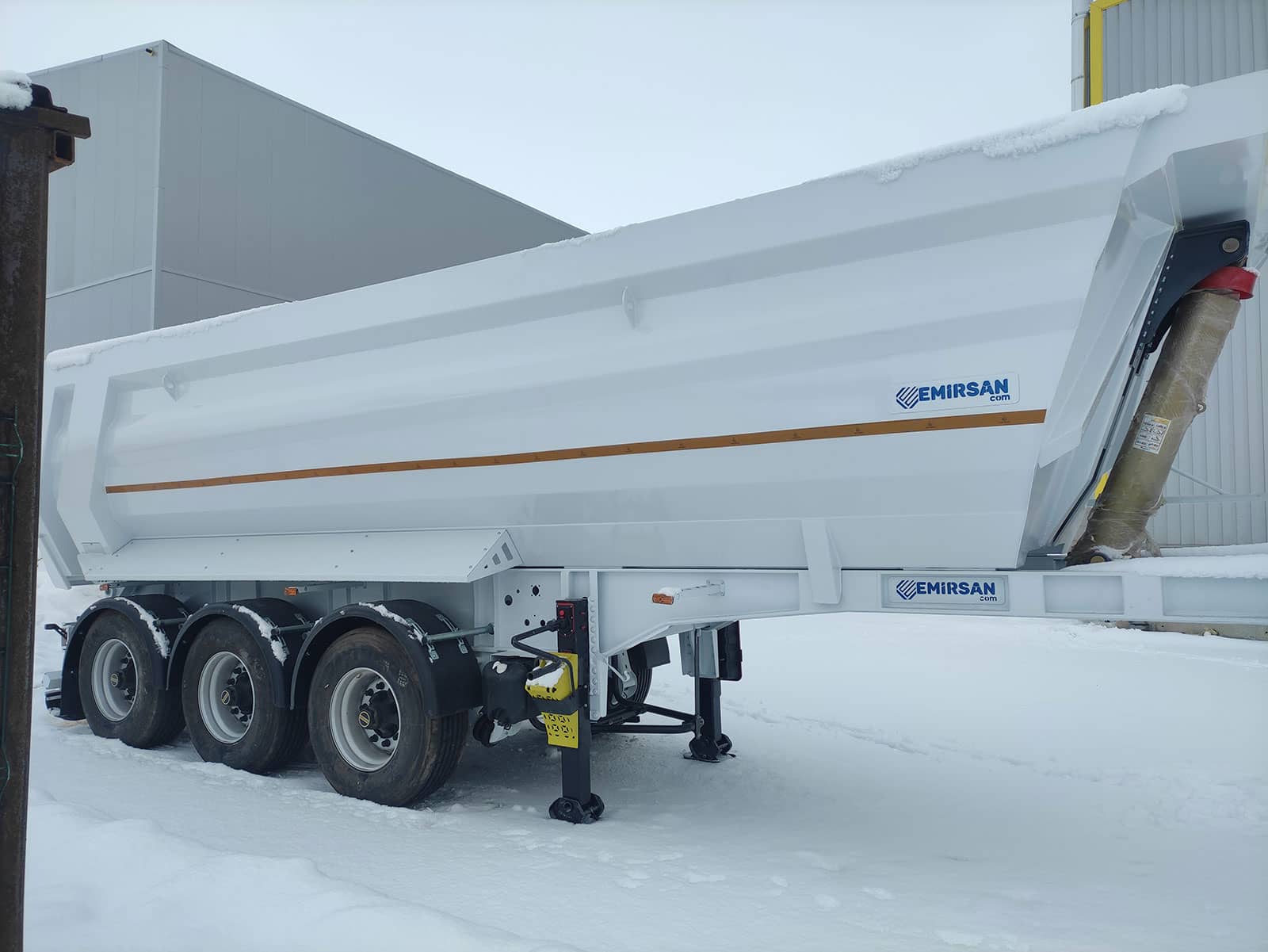

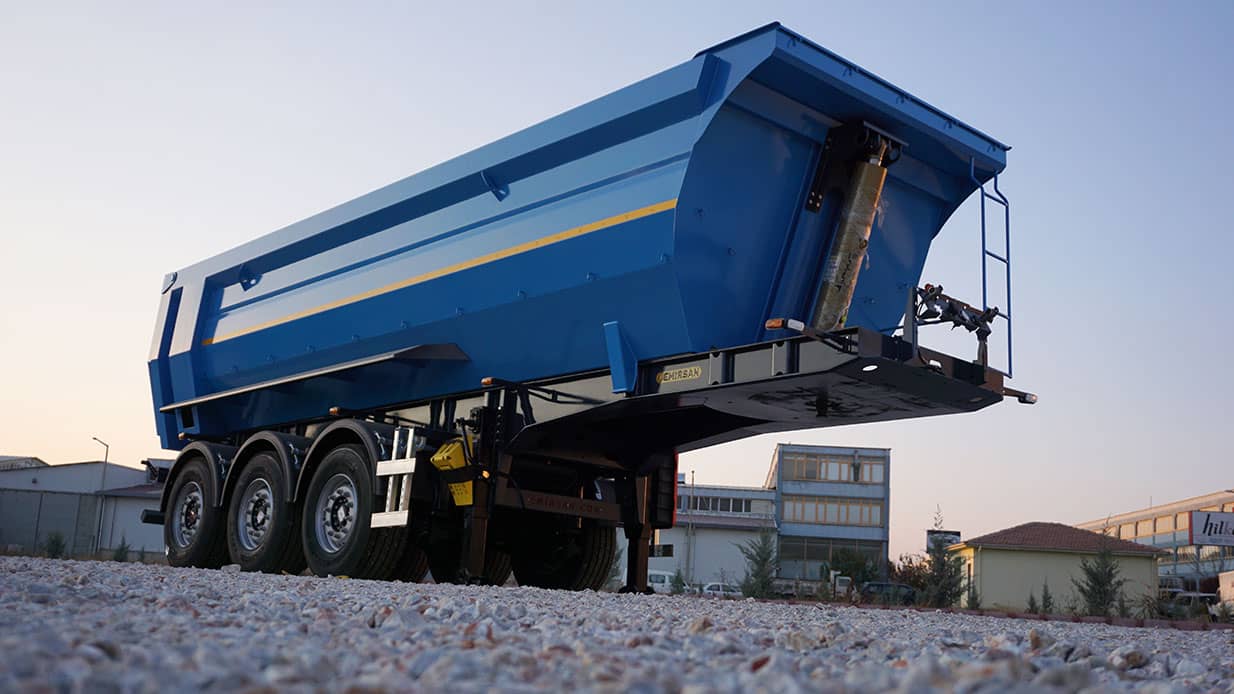

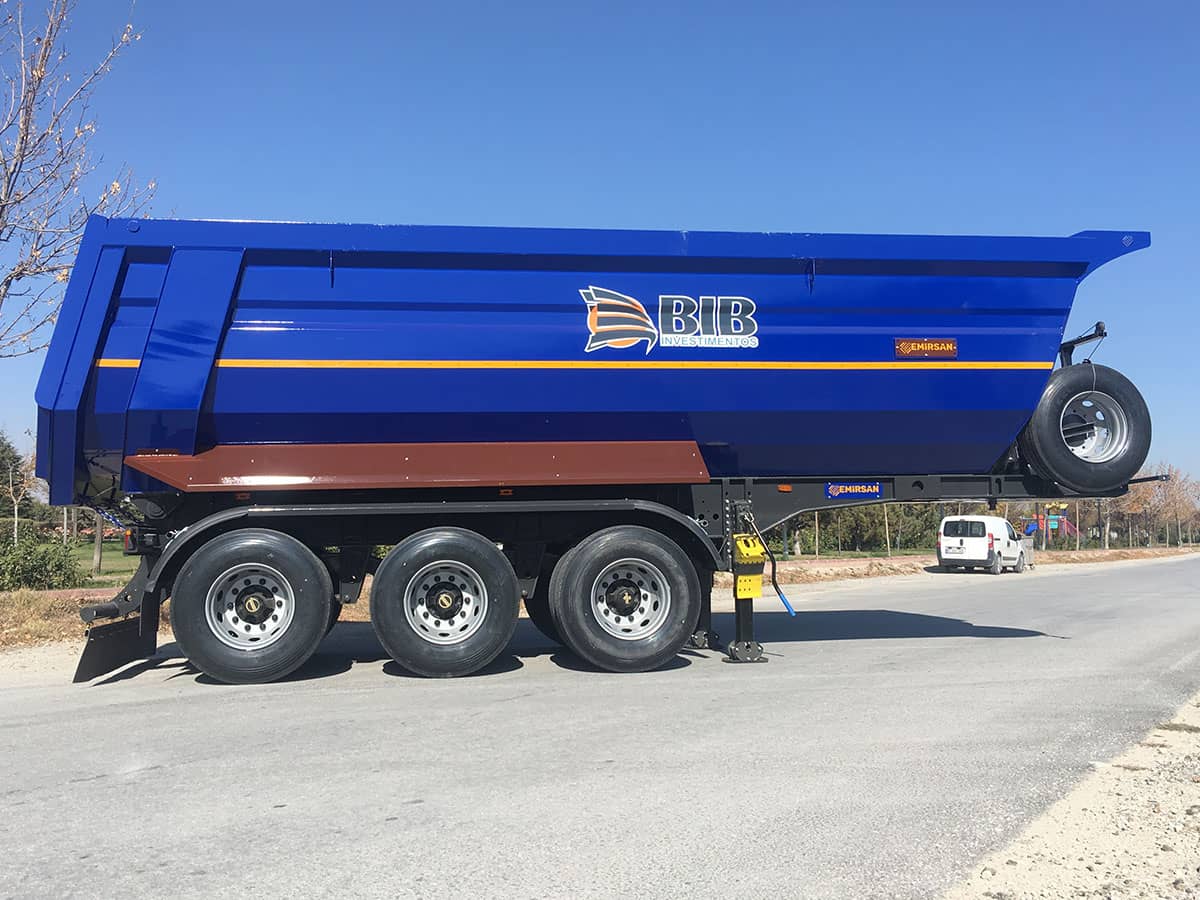

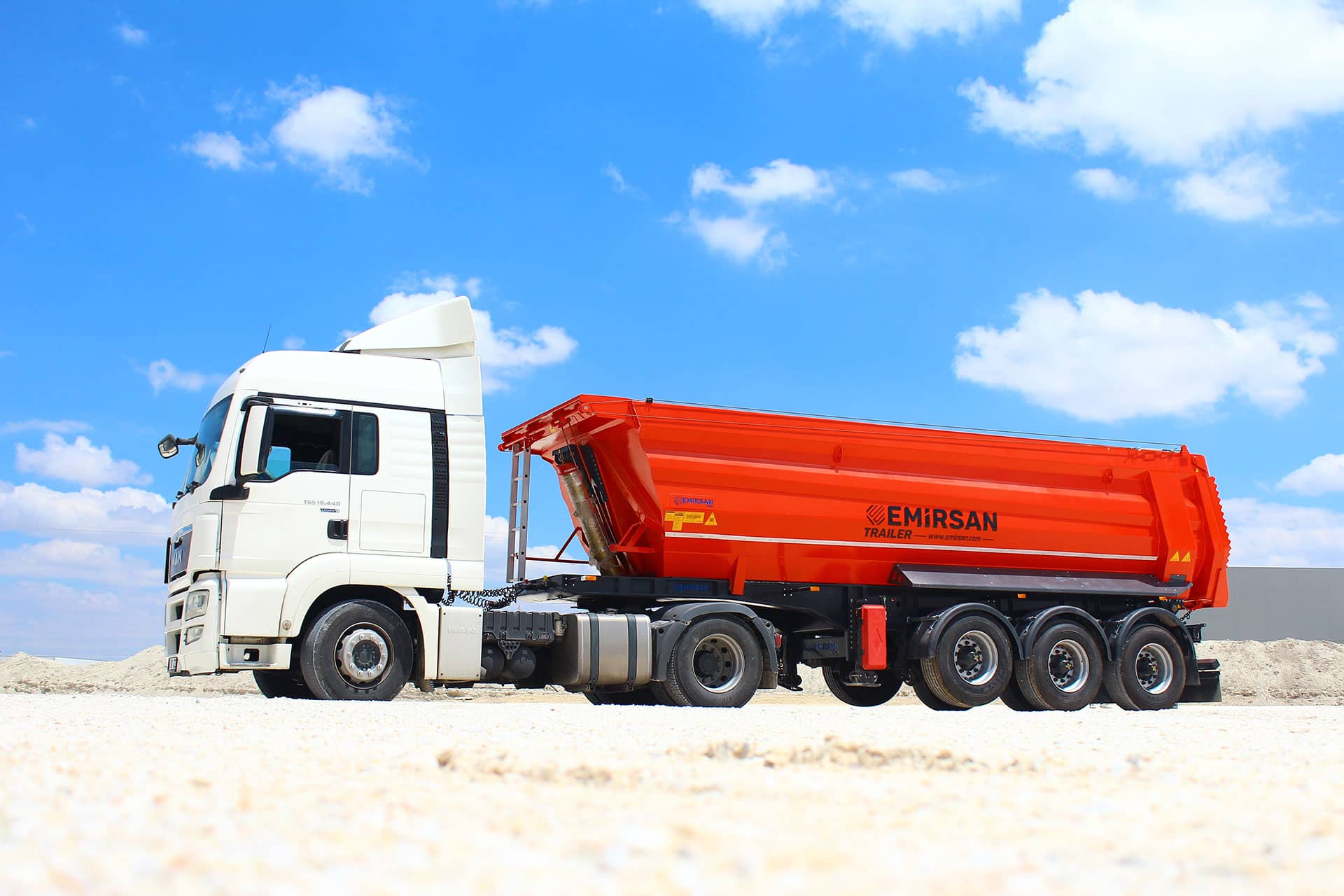

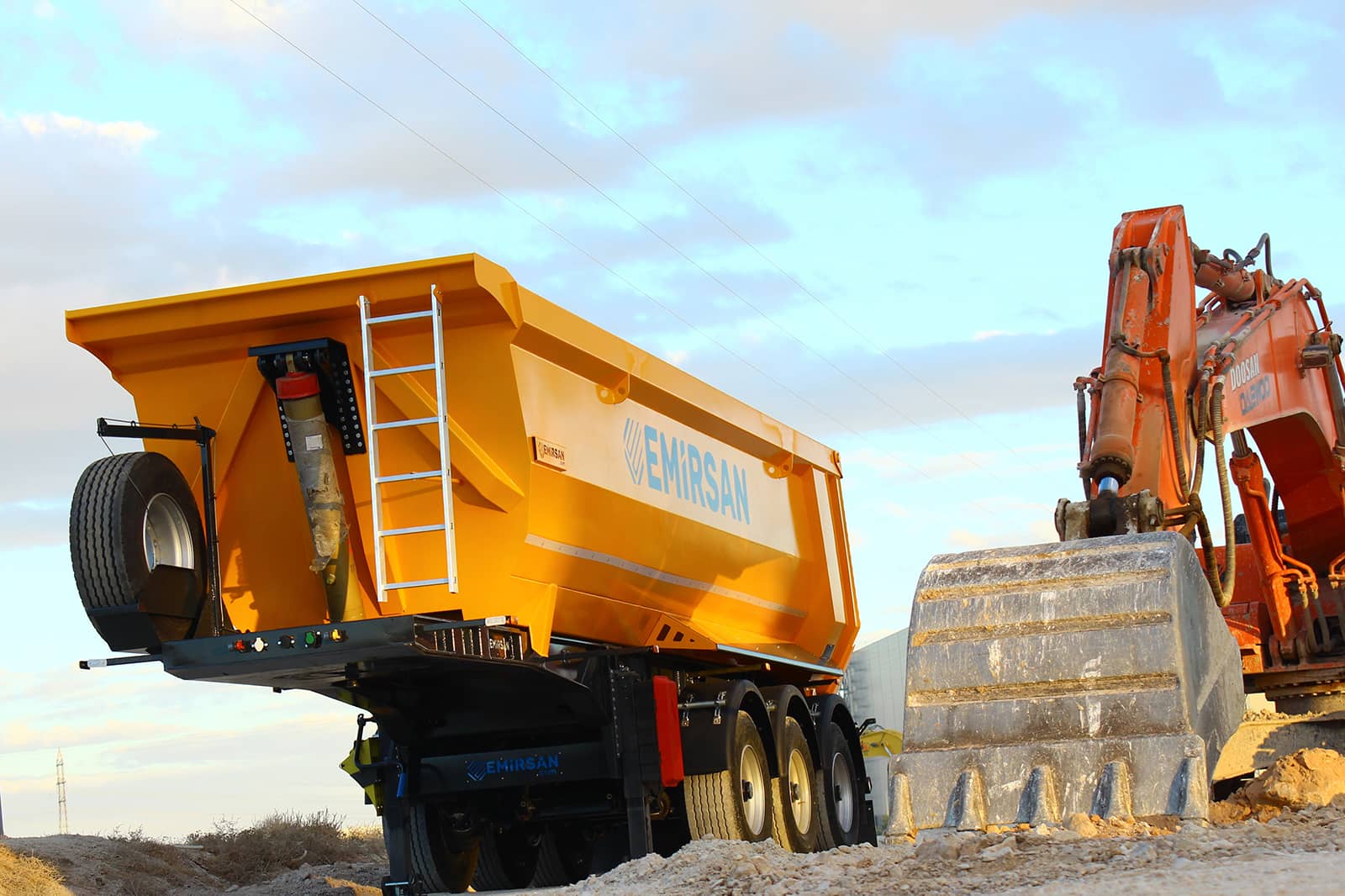

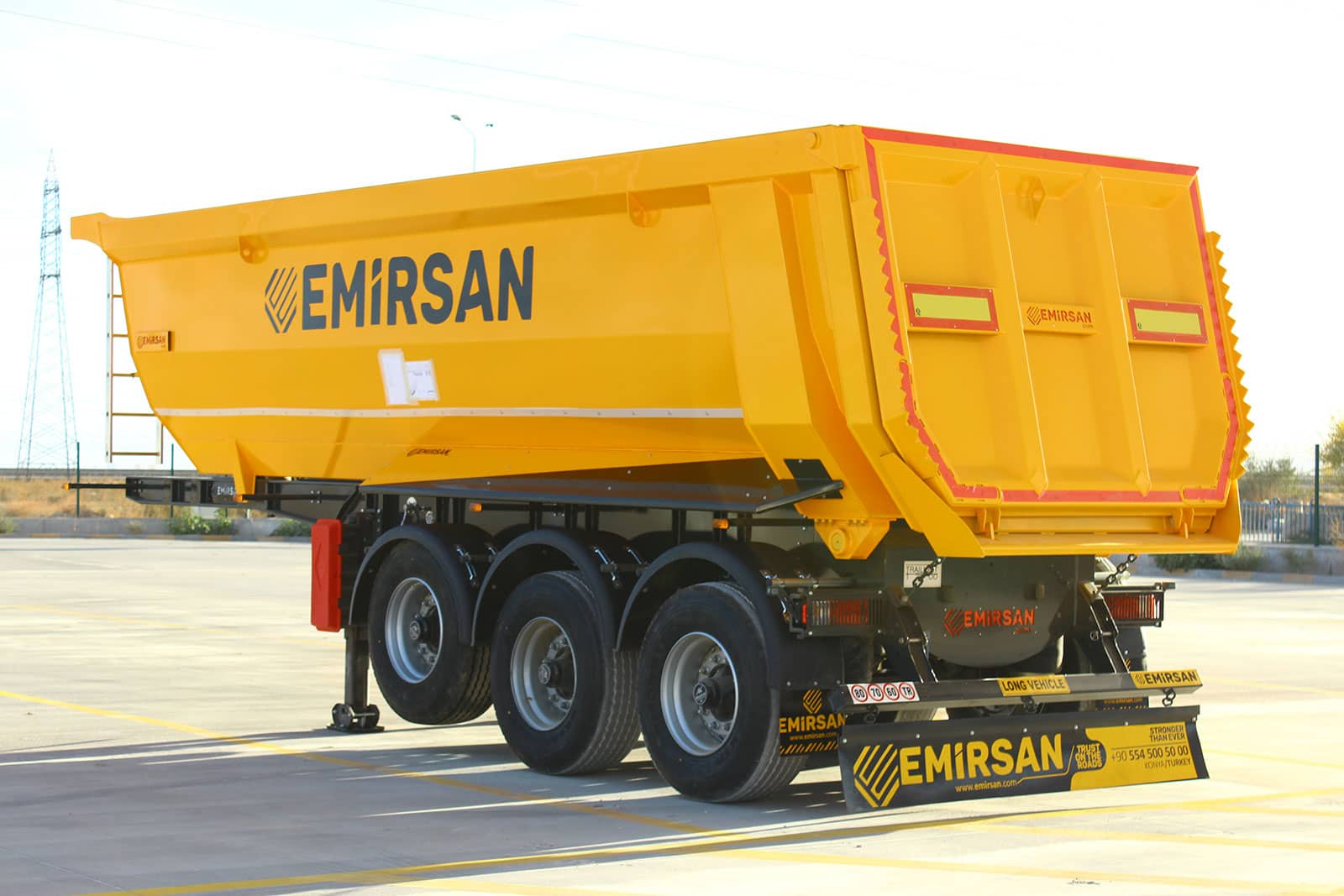

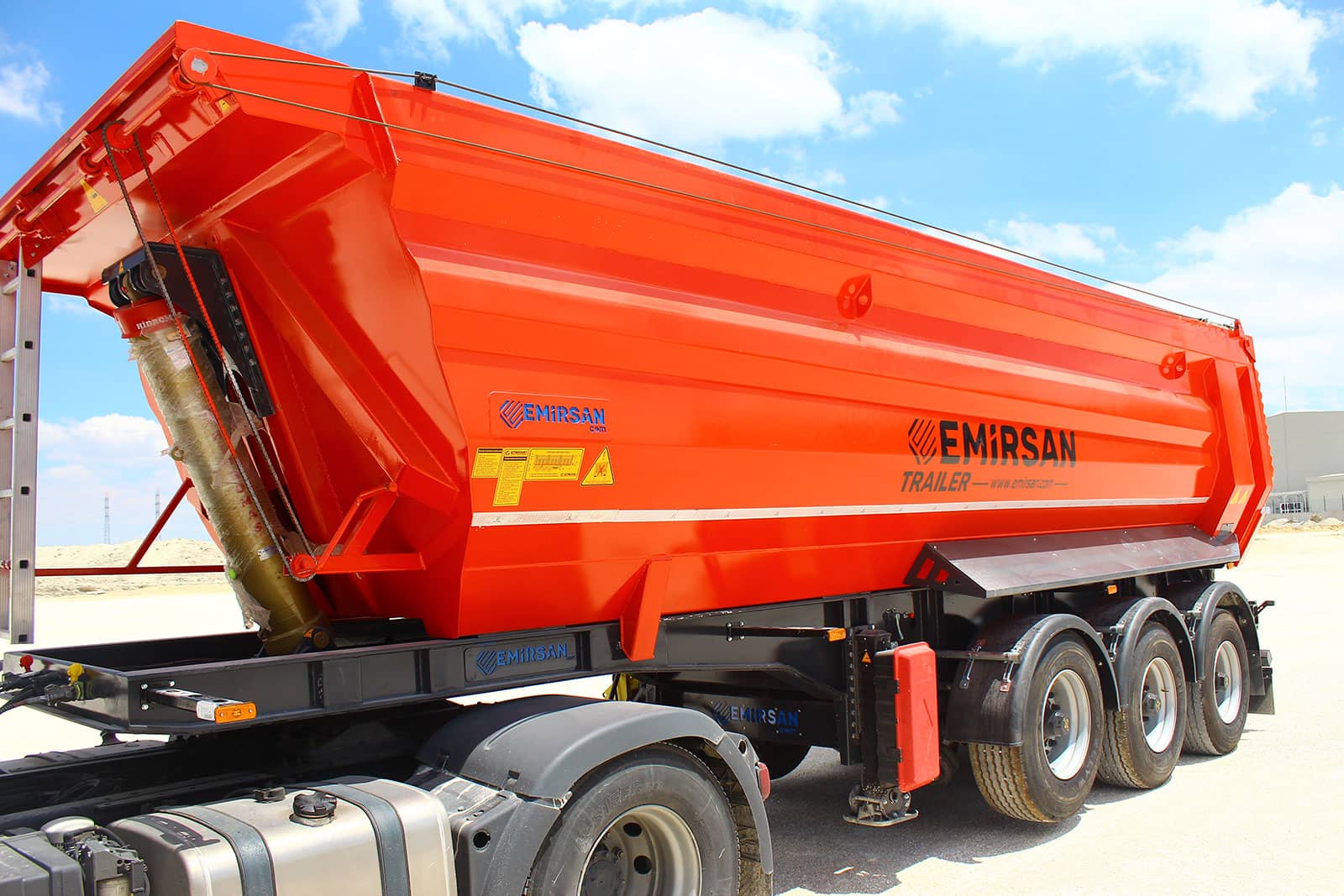

Half Pipe (Tank Type) Tipper Trailer
Sand, gravel and asphalt
Tank type tipper body designed with "U" shaped structure for fast and efficient discharge of flowable materials such as sand, gravel and asphalt.
Designed for Sand, Gravel and Asphalt.
Emirsan Tank Type Tipper is manufactured with "U" shaped body structure for the fastest and safest discharge of heavy loads. With its design that prevents material adhesion, it provides maximum efficiency in sand, gravel and asphalt transportation.
Manufactured at our 18,000 m² facility in Konya with 98/91 EEC approved steel, robotic MIG welding and CNC cutting. BPW/SAF axles, WABCO EBS braking system and air suspension are standard equipment.
Capacity, interior lining, cover type and axle configuration are fully customizable according to your operational requirements and project specifications.
Specifications
98/91 EEC standards; made of two welded longitudinal I-beams with cross beams at needed distances (Optional special Strenx® 700MC steel for lightweight design)
Body is made of ST-52 (S355JR) for maximum abrasiveness and impact resistance (Optional special Hardox® 450 and Hardox® 500 Tuf steel for lightweight design)
4 mm side, front and back walls, 5 mm floor thickness (Optional: desired thickness)
Mechanical open, lengthwise, top-hinged (Optional hydraulic)
Movable rear bumper compliant with 70/221/EEC standards and tested (Optional: dipped galvanized abrasion- and corrosion-resistant rear bumper)
Optional: manual sliding tarpaulin with continuous rail, electrical sliding and protective tarpaulin
Every detail, deliberate.
EU type approval
98/91 EEC homologation and full compliance with road regulations across the EU, GCC, and CIS.
Premium running gear
BPW or SAF axles with air suspension, EBS brakes, and optional lift axle for payload efficiency.
High-tensile steel chassis
S700 MC–S960 MC steel reduces tare weight without compromising structural integrity.
Built-in corrosion protection
Grit-blasted, epoxy primed, 2K polyurethane top-coat — engineered for a 15-year service life.
Global after-sales
24/7 technical support, spare-parts network across 40+ countries, on-site commissioning.
Tailored to your operation
Customizable dimensions, paint, axle layout, and accessories to match your fleet standards.
