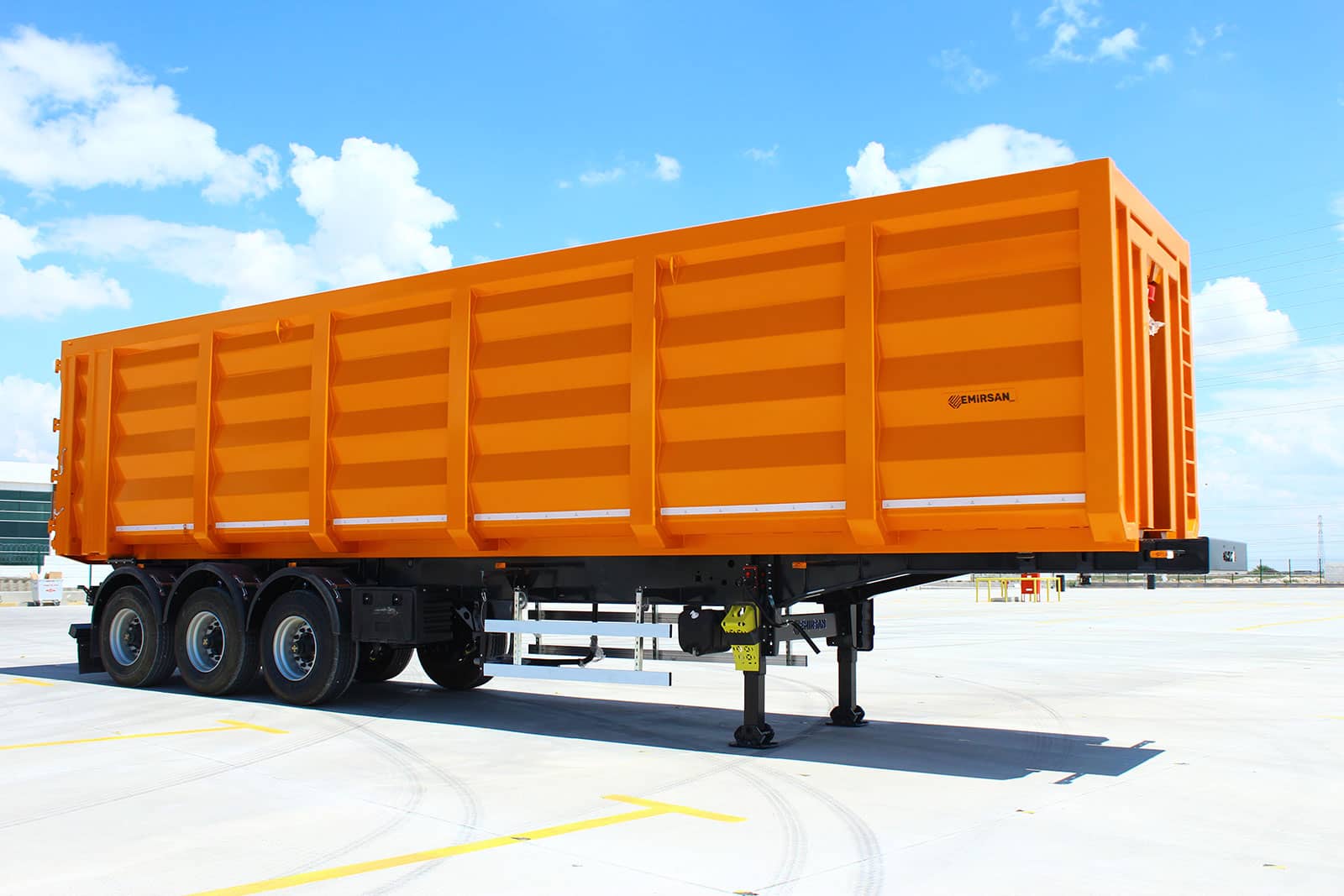

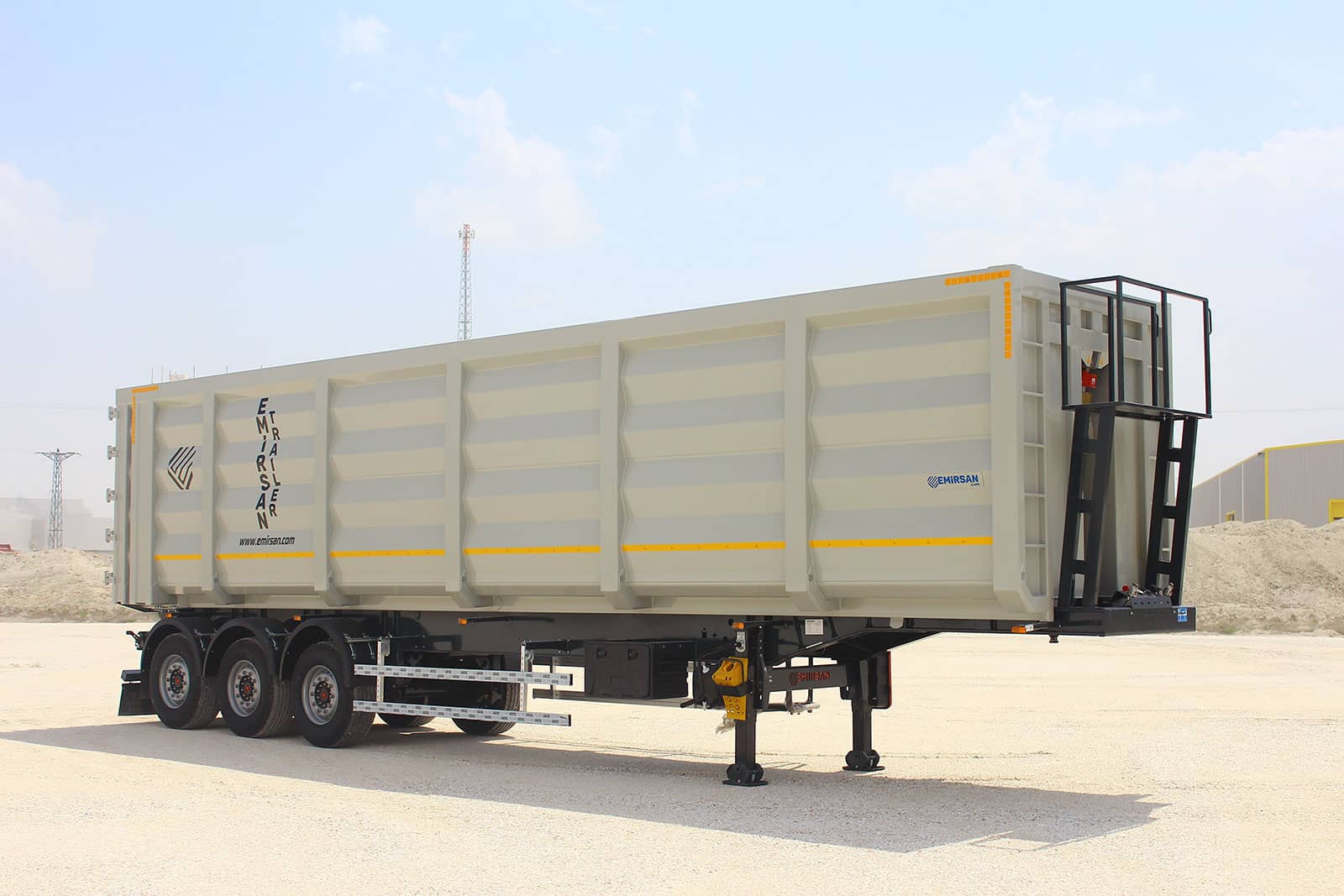

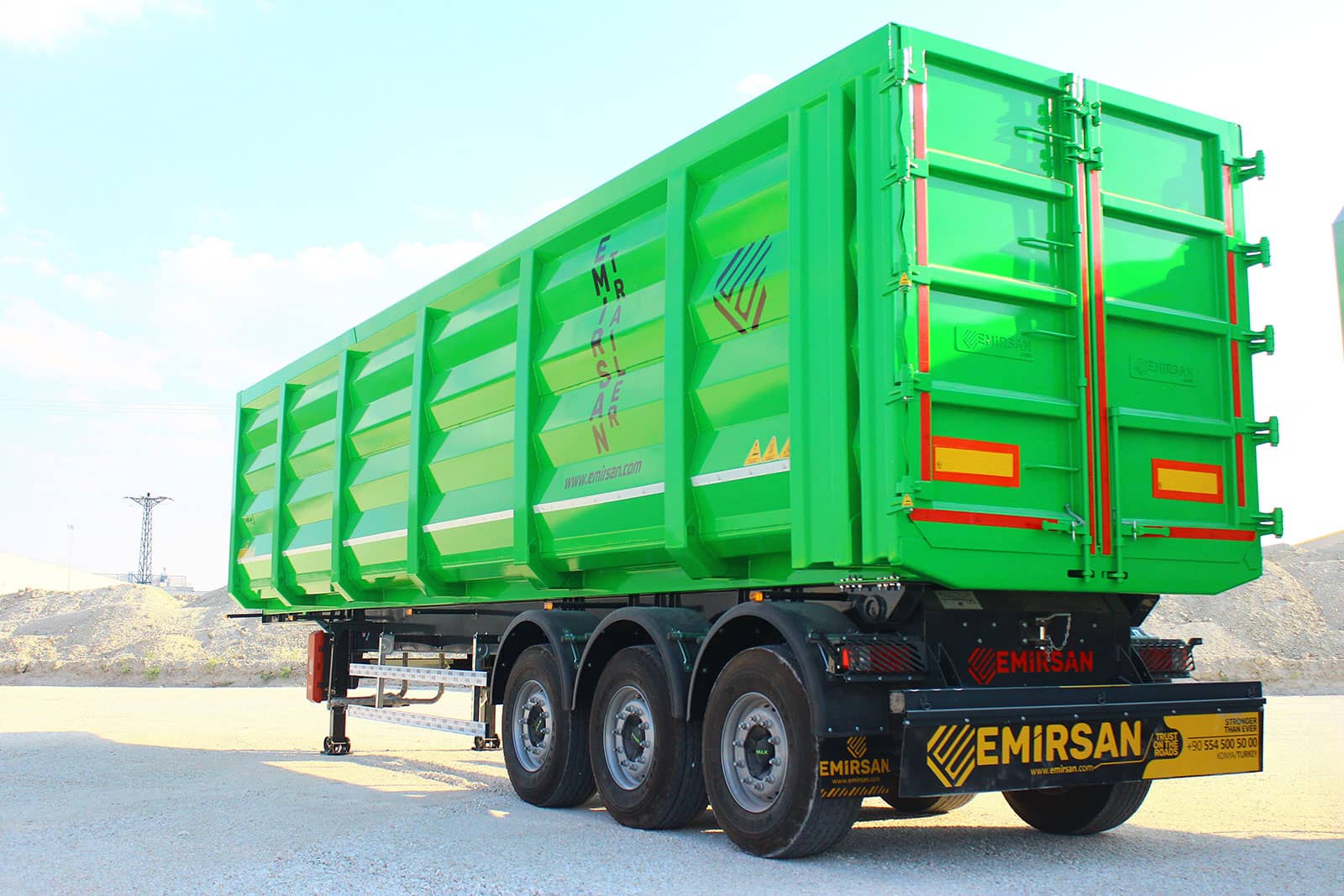

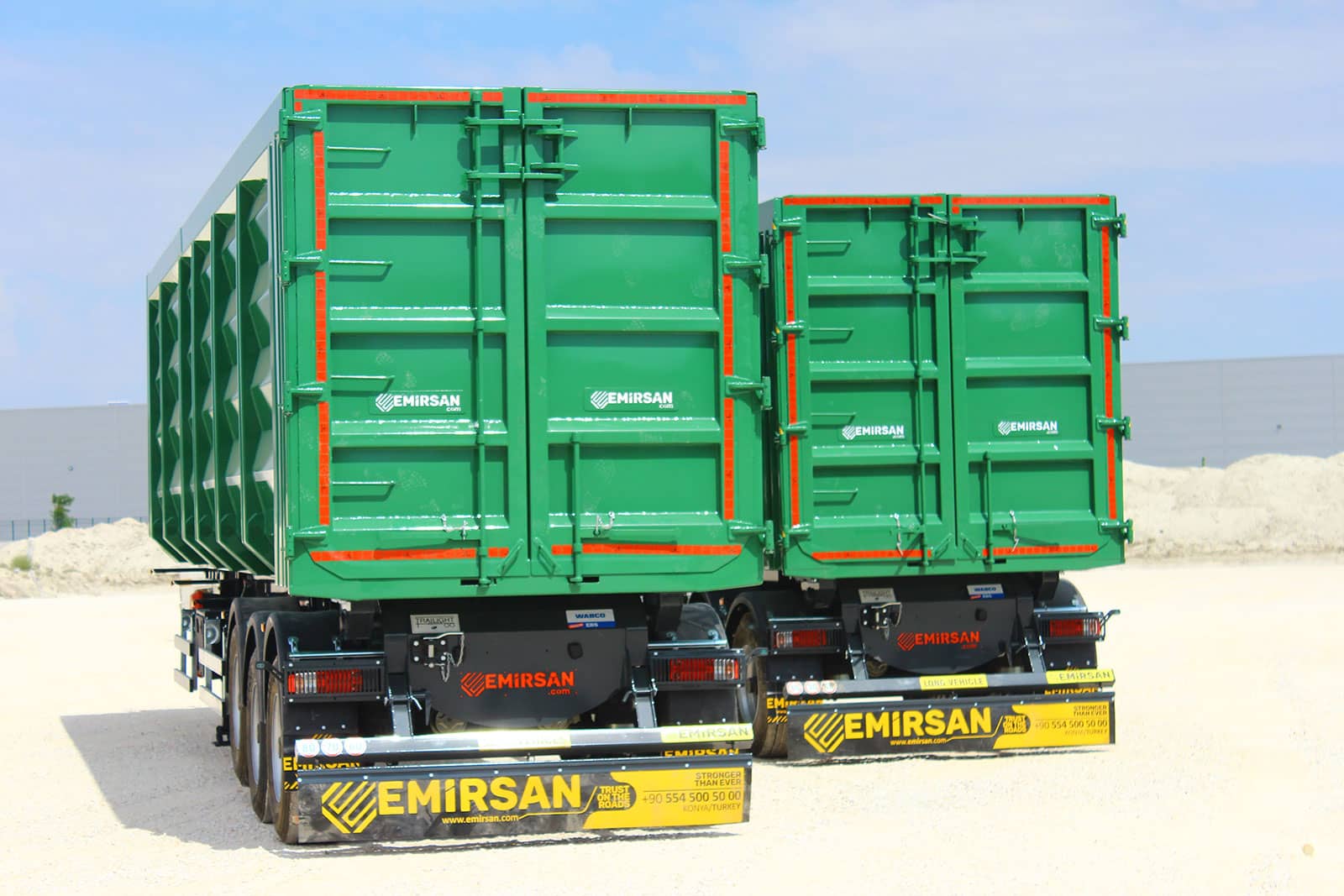

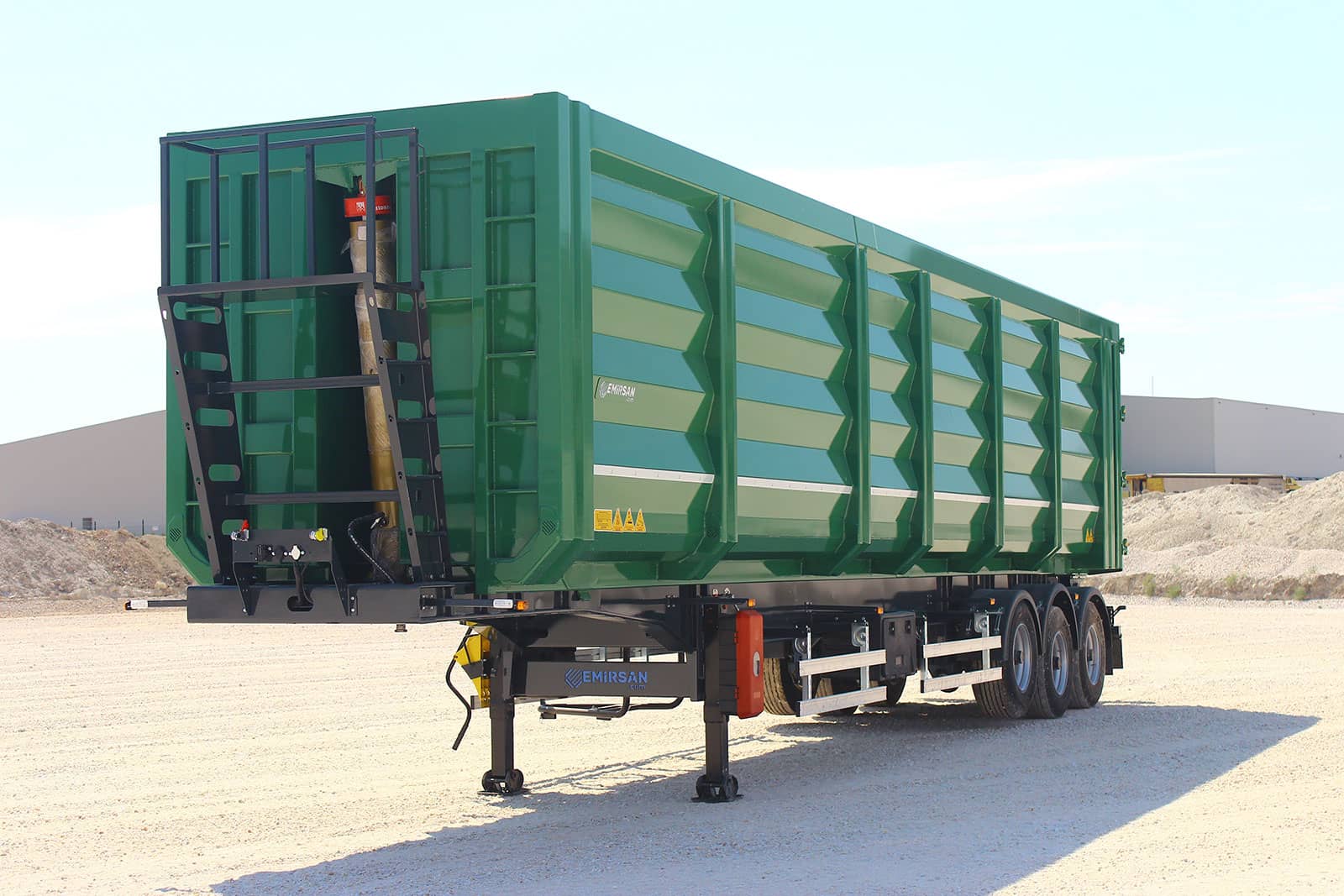

Scrap Tipper Dump Trailer
Scrap and recycling logistics
Heavy-duty reinforced dump bed with high sides and wear-resistant construction, manufactured for transporting metal scrap, steel waste, and recycling materials under severe operating conditions.
Custom volumes available
Varies with options
Custom sizes available
Configurable
Designed for Scrap and Recycling Transportation.
Scrap Tipper Dump Trailer is manufactured for metal scrap, steel waste, recycling materials, and heavy industrial waste transportation. High side walls and reinforced chassis provide long service life against impact from sharp and cutting scrap.
Manufactured at our Konya facility using 98/91 EEC approved Hardox wear-resistant steel, robotic MIG welding, and CNC cutting. Additional wear plates are applied to the internal floor and side surfaces. BPW/SAF axles, WABCO EBS braking system, air suspension.
Capacity, side height, rear gate type (hinged / tailgate), number of axles, and accessories are customized according to customer operations. Field support in 40+ countries.
Specifications
98/91 EEC standards; made of two welded longitudinal I-beams with cross beams at needed distances (Optional special Strenx® 700MC steel for lightweight design)
Body is made of ST-52 (S355JR) for maximum abrasiveness and impact resistance (Optional special Hardox® 450 and Hardox® 500 Tuf steel for lightweight design)
4 mm side, front and back walls, 5 mm floor thickness (Optional: desired thickness)

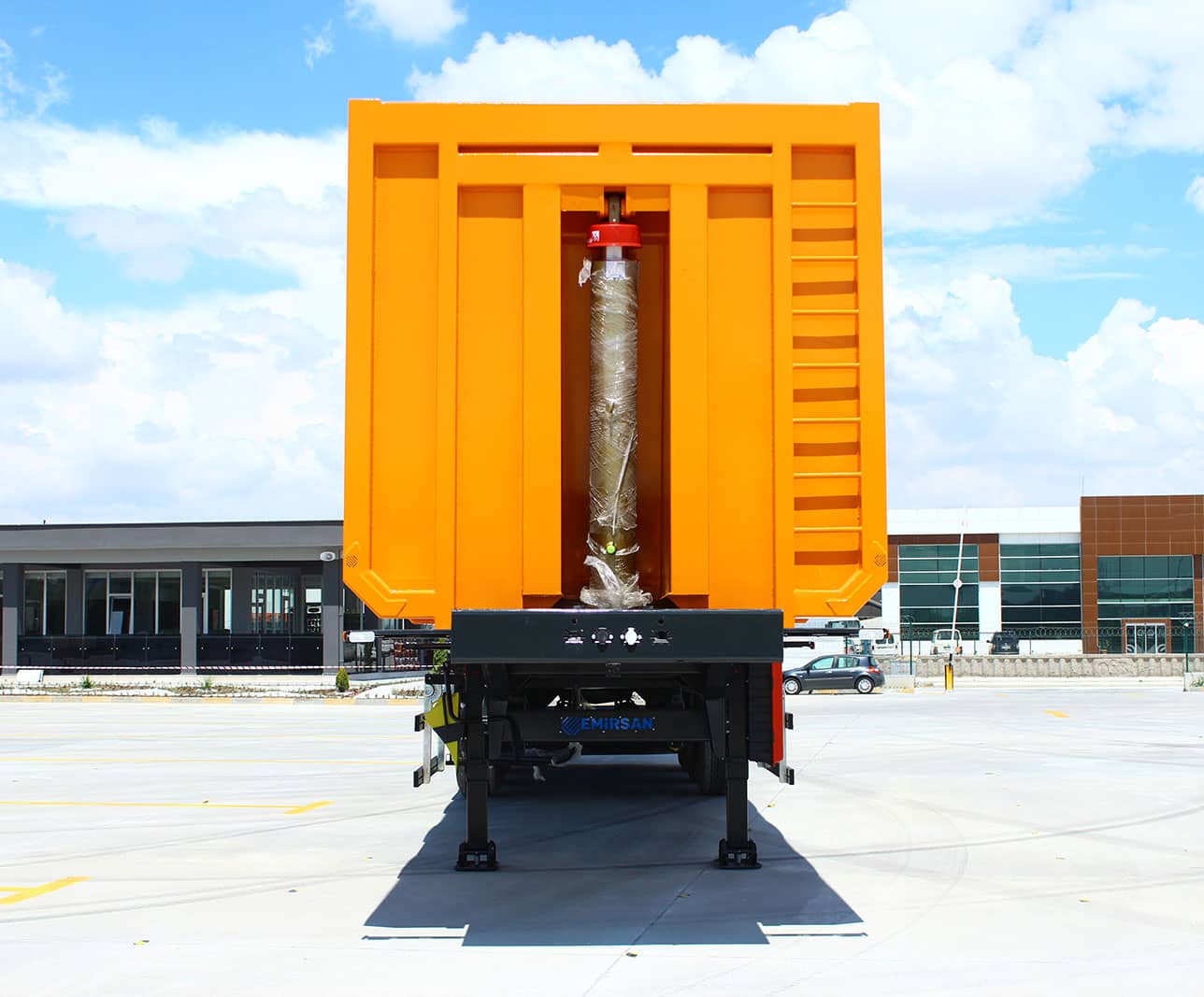

Mechanical open, lengthwise, top-hinged (Optional hydraulic)
Movable rear bumper compliant with 70/221/EEC standards and tested (Optional: dipped galvanized abrasion- and corrosion-resistant rear bumper)

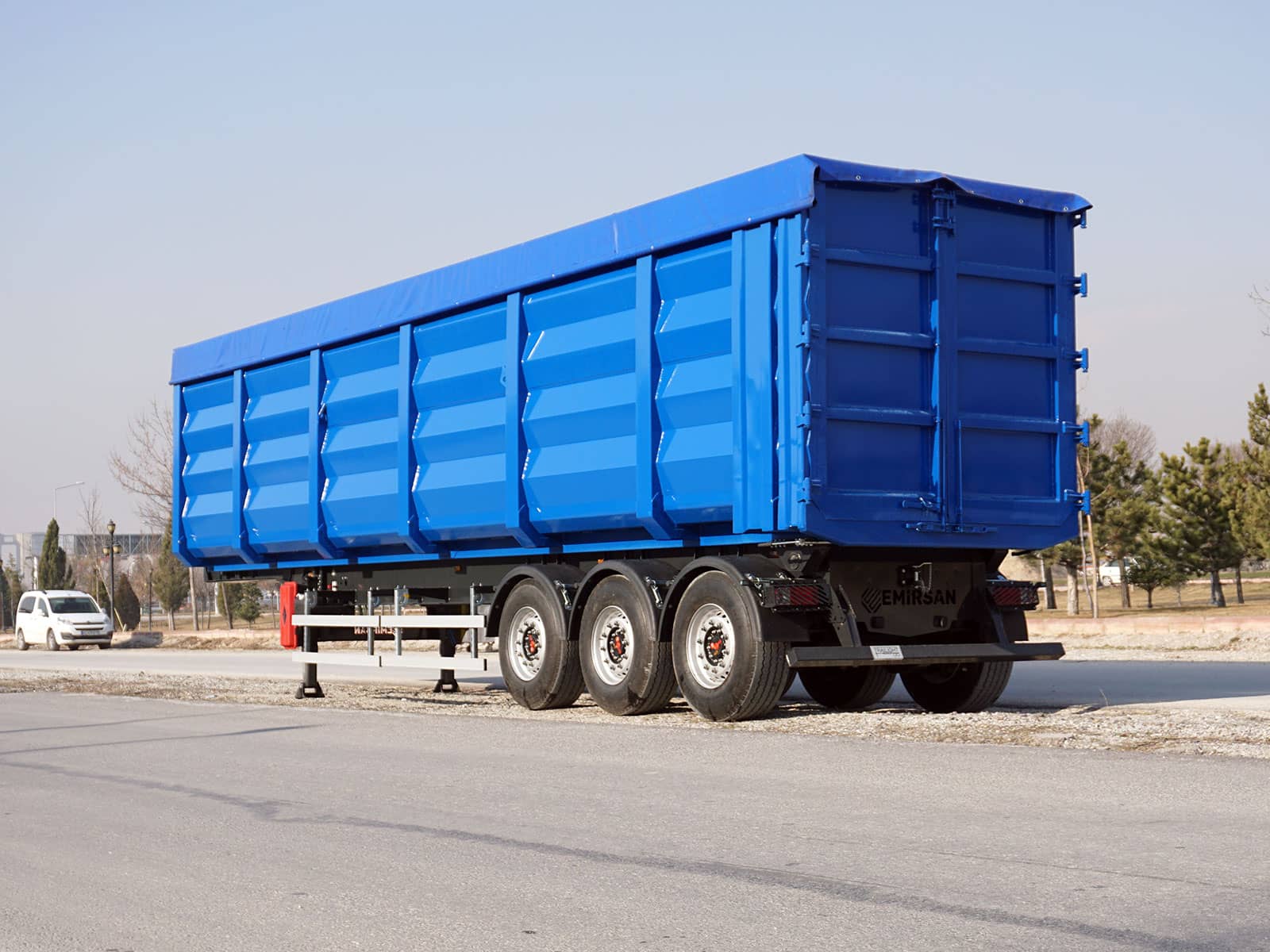

Optional: manual sliding tarpaulin with continuous rail, electrical sliding and protective tarpaulin
Every detail, deliberate.
EU type approval
98/91 EEC homologation and full compliance with road regulations across the EU, GCC, and CIS.
Premium running gear

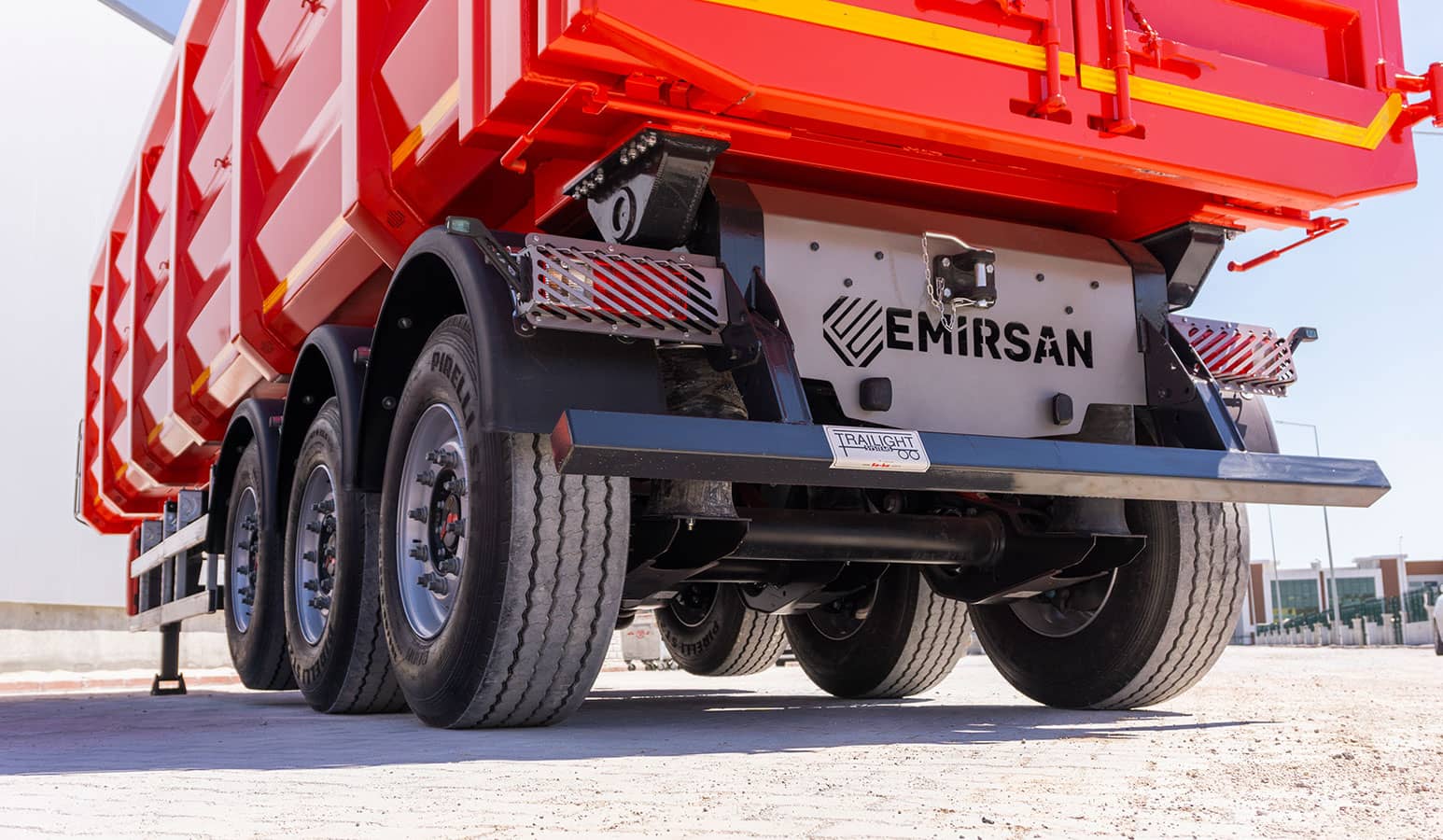

BPW or SAF axles with air suspension, EBS brakes, and optional lift axle for payload efficiency.
High-tensile steel chassis
S700 MC–S960 MC steel reduces tare weight without compromising structural integrity.
Built-in corrosion protection
Grit-blasted, epoxy primed, 2K polyurethane top-coat — engineered for a 15-year service life.
Global after-sales
24/7 technical support, spare-parts network across 40+ countries, on-site commissioning.
Tailored to your operation
Customizable dimensions, paint, axle layout, and accessories to match your fleet standards.
