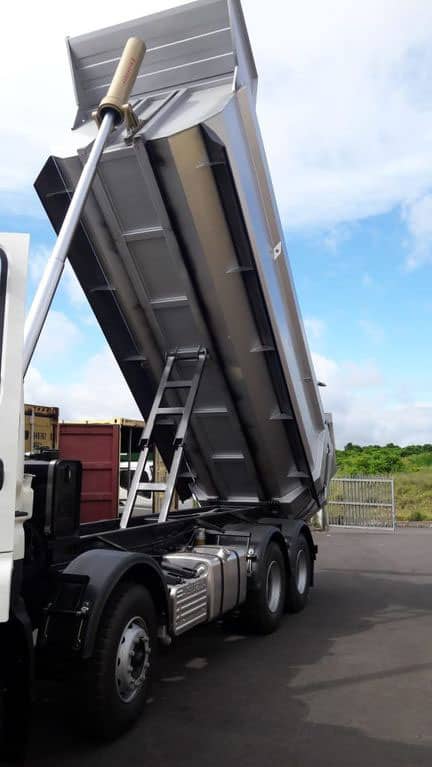

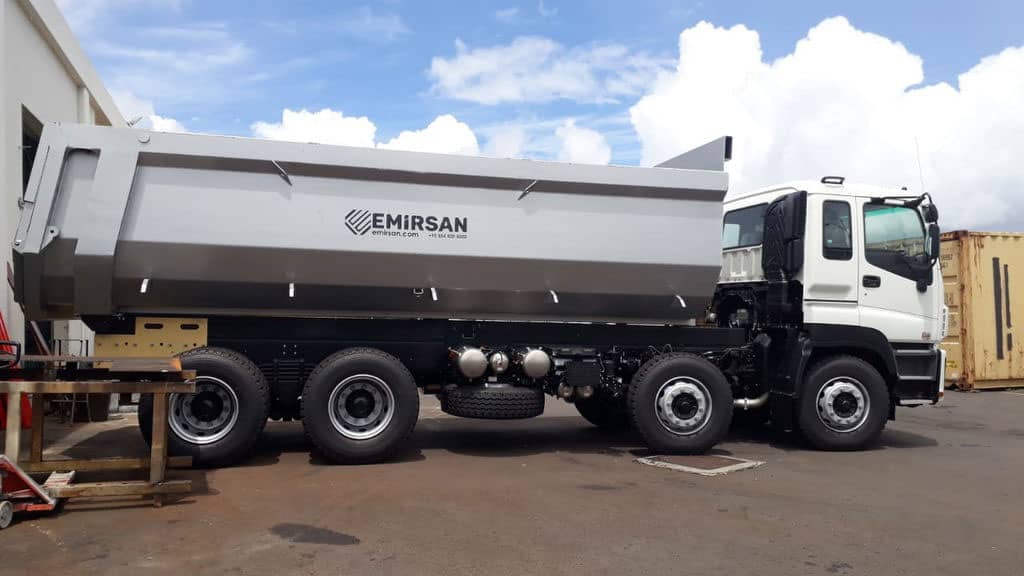

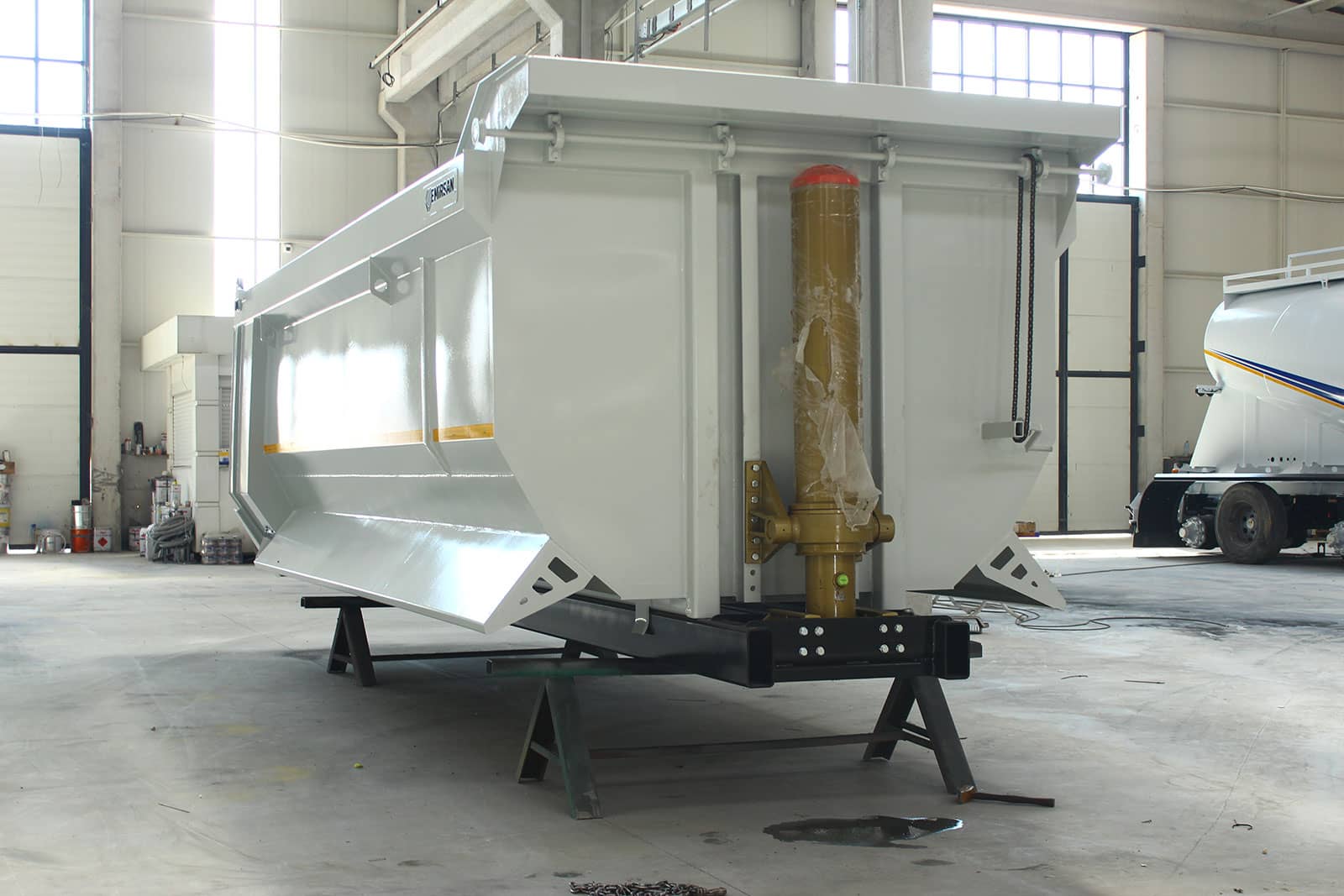

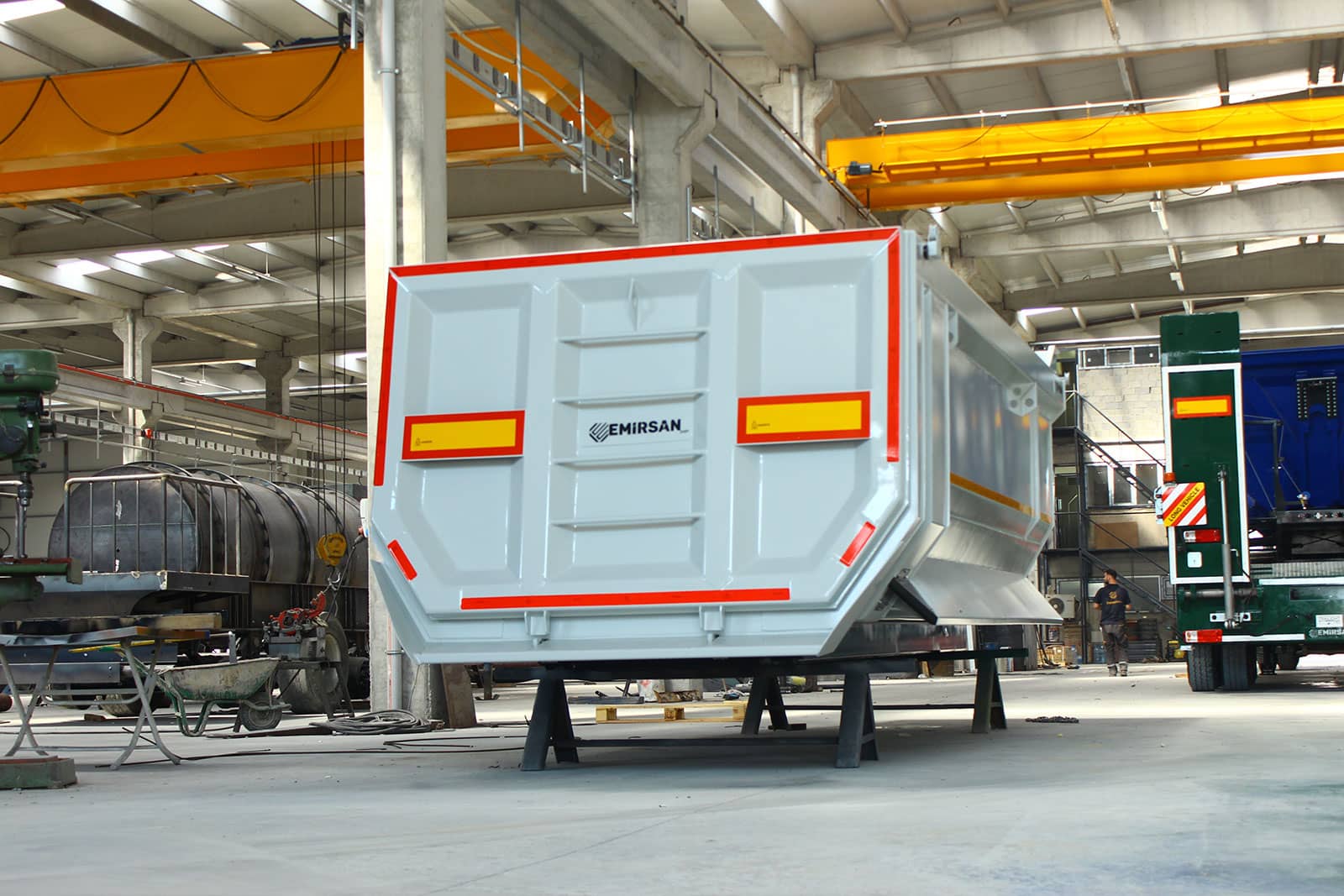

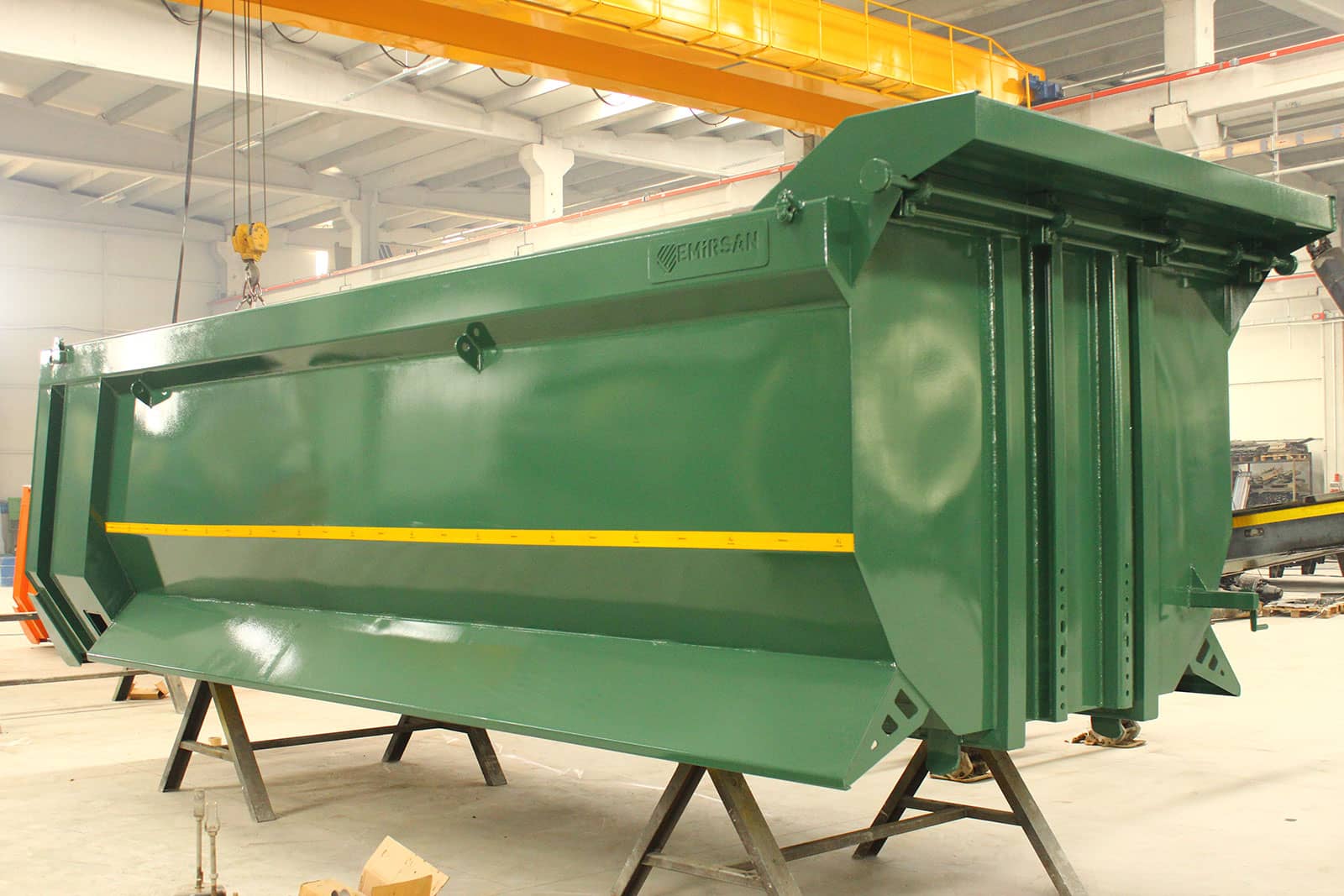

Truck-Mounted (Rigid Body) Tipper
Urban and Short-Distance Applications
A fixed tipper body mounted directly to the truck chassis; manufactured for urban excavation, municipal services, and short-distance construction logistics.
Designed for Urban and Short-Distance Tipper Applications.
The Truck-Mounted (Rigid Body) Tipper is a fixed tipper body mounted directly to the truck chassis. It is used in urban excavation, municipal services, short-distance construction logistics, and agricultural transport.
Manufactured from 98/91 EEC approved steel using robotic MIG welding and CNC cutting. Configurable with front-mounted (classic) or rear-mounted tipping systems, and manual or pneumatic gate systems.
Body volume, platform length, internal/external height, gate type, and side wall thickness are customized according to the vehicle chassis and operational profile.
Specifications
98/91 EEC standards; made of two welded longitudinal I-beams with cross beams at needed distances (Optional special Strenx® 700MC steel for lightweight design)
Body is made of ST-52 (S355JR) for maximum abrasiveness and impact resistance (Optional special Hardox® 450 and Hardox® 500 Tuf steel for lightweight design)
4 mm side, front and back walls, 5 mm floor thickness (Optional: desired thickness)
Mechanical open, lengthwise, top-hinged (Optional hydraulic)
Movable rear bumper compliant with 70/221/EEC standards and tested (Optional: dipped galvanized abrasion- and corrosion-resistant rear bumper)
Optional: manual sliding tarpaulin with continuous rail, electrical sliding and protective tarpaulin
Every detail, deliberate.
EU type approval
98/91 EEC homologation and full compliance with road regulations across the EU, GCC, and CIS.
Premium running gear
BPW or SAF axles with air suspension, EBS brakes, and optional lift axle for payload efficiency.
High-tensile steel chassis
S700 MC–S960 MC steel reduces tare weight without compromising structural integrity.
Built-in corrosion protection
Grit-blasted, epoxy primed, 2K polyurethane top-coat — engineered for a 15-year service life.
Global after-sales
24/7 technical support, spare-parts network across 40+ countries, on-site commissioning.
Tailored to your operation
Customizable dimensions, paint, axle layout, and accessories to match your fleet standards.
